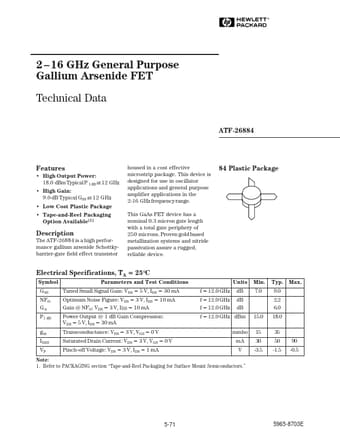

ATF-26884 Datasheet, Fet, HP

ATF-26884 Features

• Fet
• High Output Power: 18.0␣ dBm Typical P 1dB at 12␣ GHz
• High Gain: 9.0 dB Typical GSS at 12␣ GHz
• Low Cost Plastic Package
• Tape-and-Reel Packaging O

PDF File Details

Part number:

ATF-26884

Manufacturer:

HP

File Size:

39.50kb

Download:

📄 Datasheet

Description:

2-16 ghz general purpose gallium arsenide fet. The ATF-26884 is a high performance gallium arsenide Schottkybarrier-gate field effect transistor housed in a cost effective microst

ATF-26884 Application

• Applications and general purpose amplifier applications in the 2-16␣ GHz frequency range. This GaAs FET device has a nominal 0.3 micron gate length
