AFC4511W Datasheet, Mosfet, Alfa-MOS

AFC4511W Features

  • Mosfet N-Channel 20V/ 9A,RDS(ON)=13mΩ@VGS=4.5V 20V/ 7A,RDS(ON)=15mΩ@VGS=2.5V 20V/ 5A,RDS(ON)=17mΩ@VGS=1.8V P-Channel -20V/-8A,RDS(ON)=33mΩ@VGS=-4.5V -20V/-6A,RDS(ON)=43mΩ@VGS=-2.5V -20V/-5A,RD

PDF File Details

Part number:

AFC4511W

Manufacturer:

Alfa-MOS

File Size:

965.13kb

Download:

📄 Datasheet

Description:

N&p-channel mosfet. AFC4511W, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These de

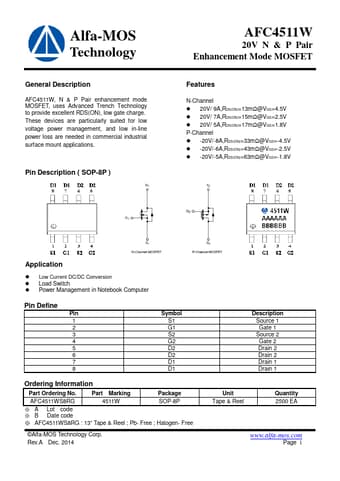

Datasheet Preview: AFC4511W 📥 Download PDF (965.13kb)
Page 2 of AFC4511W Page 3 of AFC4511W

AFC4511W Application

  • Applications Pin Description ( SOP-8P ) AFC4511W 20V N & P Pair Enhancement Mode MOSFET Features N-Channel 20V/ 9A,RDS(ON)=13mΩ@VGS=4.5V 20V/ 7A,R
