AFC4539WS Datasheet, Mosfet, Alfa-MOS

AFC4539WS Features

  • Mosfet N-Channel 30V/5.8A,RDS(ON)=30mΩ@VGS=10V 30V/5.5A,RDS(ON)=40mΩ@VGS=4.5V P-Channel -30V/-5.4A,RDS(ON)=50mΩ@VGS=10V -30V/-4.2A,RDS(ON)=70mΩ@VGS=4.5V Application Low Current DC/DC Conversi

PDF File Details

Part number:

AFC4539WS

Manufacturer:

Alfa-MOS

File Size:

884.91kb

Download:

📄 Datasheet

Description:

N&p-channel mosfet. AFC4539WS, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These d

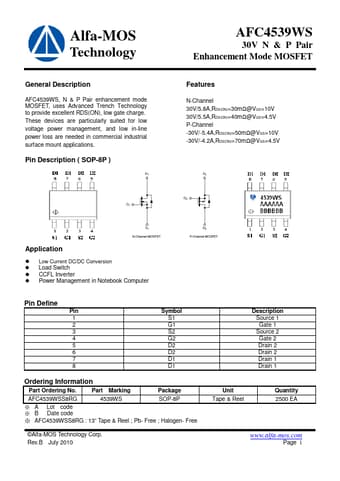

Datasheet Preview: AFC4539WS 📥 Download PDF (884.91kb)
Page 2 of AFC4539WS Page 3 of AFC4539WS

AFC4539WS Application

  • Applications Pin Description ( SOP-8P ) AFC4539WS 30V N & P Pair Enhancement Mode MOSFET Features N-Channel 30V/5.8A,RDS(ON)=30mΩ@VGS=10V 30V/5.5A
