AFC4559W, AFC4559W-Alfa Datasheet - Alfa-MOS

AFC4559W - N&P-Channel MOSFET

AFC4559W, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial surface mount applications.

Pin Descript

AFC4559W Features

* N-Channel 60V/6.8A,RDS(ON)= 42mΩ@VGS=10V 60V/5.6A,RDS(ON)= 50mΩ@VGS=4.5V P-Channel -60V/-4.0A,RDS(ON)= 100mΩ@VGS= -10V -60V/-3.0A,RDS(ON)= 120mΩ@VGS= -4.5V Application Low Current DC/DC Conversion Load Switch CCFL Inverter Power Management in Notebook Computer Pin Define Pin 1 2 3 4 5 6 7 8 Symb

AFC4559W-Alfa-MOS.pdf

This datasheet PDF includes multiple part numbers: AFC4559W, AFC4559W-Alfa. Please refer to the document for exact specifications by model.

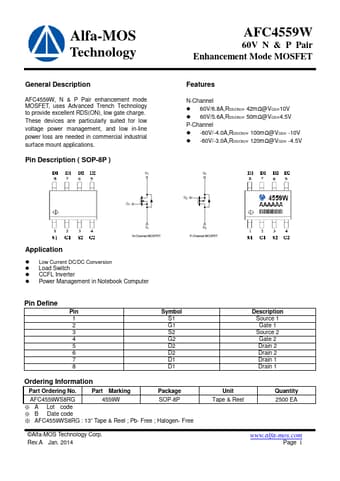

AFC4559W Datasheet Preview Page 2 AFC4559W Datasheet Preview Page 3

Datasheet Details

Part number:

AFC4559W, AFC4559W-Alfa

Manufacturer:

Alfa-MOS

File Size:

919.16 KB

Description:

N&p-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: AFC4559W, AFC4559W-Alfa.
Please refer to the document for exact specifications by model.
