AFC4559BW Datasheet, Mosfet, Alfa-MOS

AFC4559BW Features

  • Mosfet N-Channel 60V/6.8A,RDS(ON)=50mΩ@VGS=10V 60V/5.6A,RDS(ON)=58mΩ@VGS=4.5V P-Channel -60V/-4.0A,RDS(ON)= 80mΩ@VGS= -10V -60V/-3.0A,RDS(ON)= 110mΩ@VGS= -4.5V Application Low Current DC/DC C

PDF File Details

Part number:

AFC4559BW

Manufacturer:

Alfa-MOS

File Size:

919.32kb

Download:

📄 Datasheet

Description:

N&p-channel mosfet. AFC4559BW, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These d

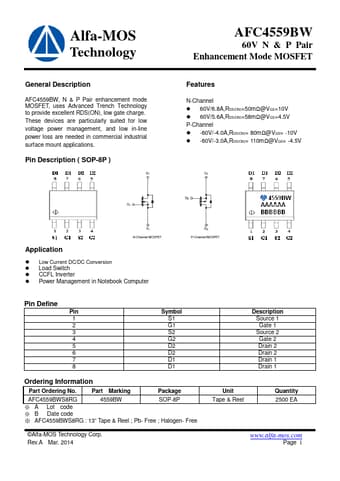

Datasheet Preview: AFC4559BW 📥 Download PDF (919.32kb)
Page 2 of AFC4559BW Page 3 of AFC4559BW

AFC4559BW Application

  • Applications Pin Description ( SOP-8P ) AFC4559BW 60V N & P Pair Enhancement Mode MOSFET Features N-Channel 60V/6.8A,RDS(ON)=50mΩ@VGS=10V 60V/5.6A
