AFC4516W Datasheet, Mosfet, Alfa-MOS

AFC4516W Features

  • Mosfet N-Channel 30V/8A,RDS(ON)=15mΩ@VGS=10V 30V/6A,RDS(ON)=20mΩ@VGS=4.5V P-Channel -30V/-8A,RDS(ON)=28mΩ@VGS=-10V -30V/-6A,RDS(ON)=37mΩ@VGS=-4.5V Application Low Current DC/DC Conversion Loa

PDF File Details

Part number:

AFC4516W

Manufacturer:

Alfa-MOS

File Size:

810.27kb

Download:

📄 Datasheet

Description:

N&p-channel mosfet. AFC4516W, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These de

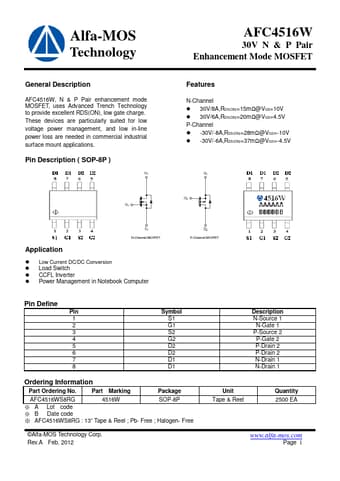

Datasheet Preview: AFC4516W 📥 Download PDF (810.27kb)
Page 2 of AFC4516W Page 3 of AFC4516W

AFC4516W Application

  • Applications Pin Description ( SOP-8P ) AFC4516W 30V N & P Pair Enhancement Mode MOSFET Features N-Channel 30V/8A,RDS(ON)=15mΩ@VGS=10V 30V/6A,RDS(
