AFC4510WS Datasheet, Mosfet, Alfa-MOS

AFC4510WS Features

  • Mosfet N-Channel
  • ID=3.0A,R = DS(ON) 140mΩ@VGS=10V  ID=2.0A,R = DS(ON) 150mΩ@VGS=4.5V P-Channel
  • ID=-2.5A,RDS(ON)= 235mΩ@VGS= -10V  ID=-1.8A,RDS(ON)= 245mΩ@VGS= -4.5V Appl

PDF File Details

Part number:

AFC4510WS

Manufacturer:

Alfa-MOS

File Size:

747.92kb

Download:

📄 Datasheet

Description:

100v n&p-channel mosfet. AFC4510WS, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These d

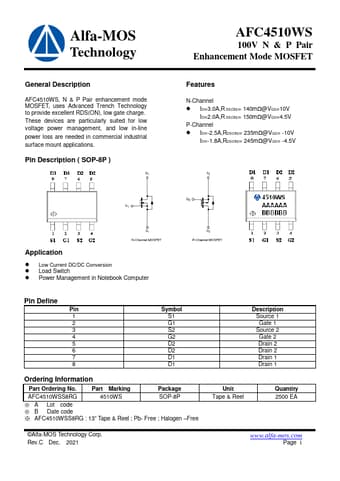

Datasheet Preview: AFC4510WS 📥 Download PDF (747.92kb)
Page 2 of AFC4510WS Page 3 of AFC4510WS

AFC4510WS Application

  • Applications Pin Description ( SOP-8P ) AFC4510WS 100V N & P Pair Enhancement Mode MOSFET Features N-Channel
  • ID=3.0A,R = DS(ON) 140mΩ@VG
