AFN2376 N-Channel Enhancement Mode MOSFET

AFN2376, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, such as smart phone and notebook computer and other battery powered circuits, and low in-line power loss .

AFN2376 Features

* 60V/5.4A,RDS(ON)=46mΩ@VGS=10V

* 60V/3.8A,RDS(ON)=54mΩ@VGS=4.5V

* Super high density cell design for extremely low RDS (ON)

* Exceptional on-resistance and maximum DC current capability

* SOT-23-3L package design Application

* Portable Equipment

* Battery Powered System

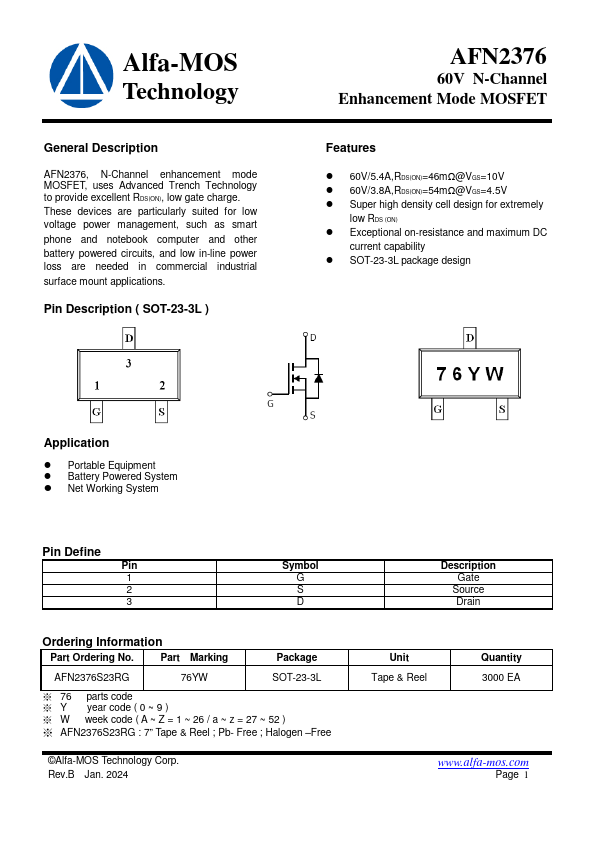

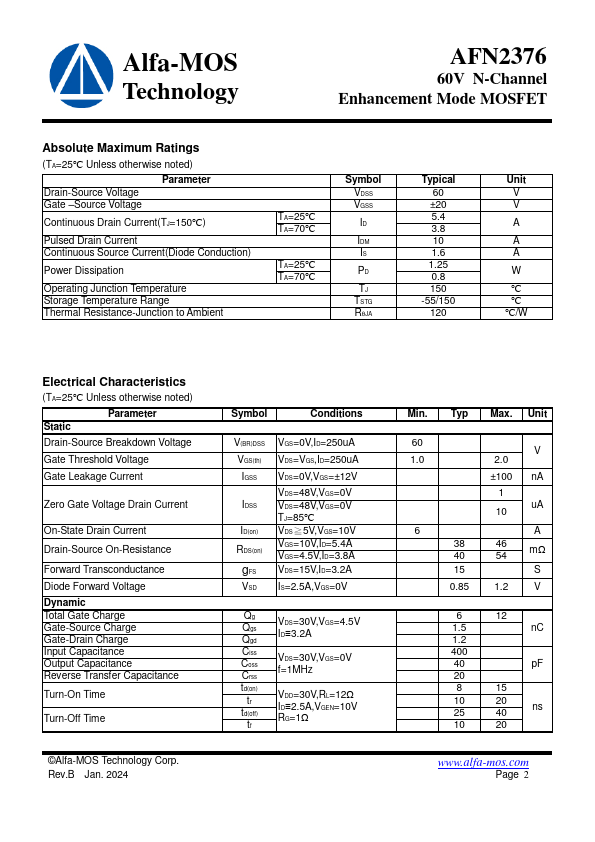

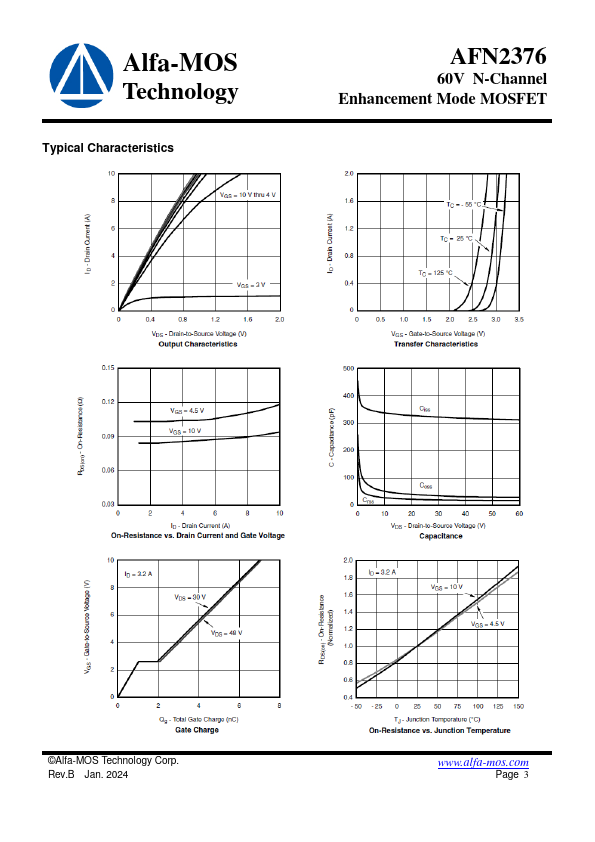

AFN2376-Alfa-MOS.pdf

AFN2376 Datasheet Preview — This datasheet PDF includes multiple part numbers: AFN2376, AFN2376-Alfa. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AFN2376, AFN2376-Alfa

Manufacturer:

Alfa-MOS

File Size:

343.52 KB

Description:

N-channel enhancement mode mosfet.

Note:

This datasheet PDF includes multiple part numbers: AFN2376, AFN2376-Alfa.
Please refer to the document for exact specifications by model.
