AFN3402A

N-Channel MOSFET

AFN3402A Features

* 30V/2.4A,RDS(ON)=82mΩ@VGS=10V 30V/2.0A,RDS(ON)=87mΩ@VGS=4.5V 30V/1.5A,RDS(ON)=110mΩ@VGS=2.5V Super high density cell design for extremely low RDS (ON) Exceptional on-resistance and maximum DC current capability SOT-23 package design Application Portable Equipment Battery Powered System Net Working

AFN3402A General Description

AFN3402A, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, such as smart phone and notebook computer and other battery powered circuits, and low in-line power loss.

AFN3402A Datasheet (603.77 KB)

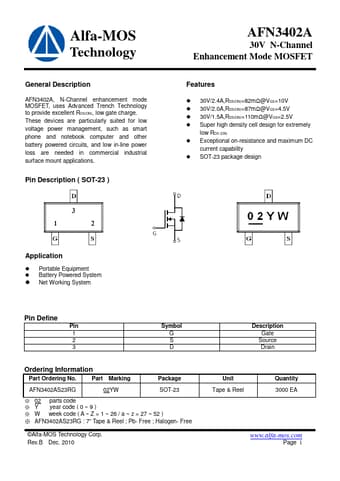

Preview of AFN3402A PDF

Datasheet Details

Part number:

AFN3402A

Manufacturer:

Alfa-MOS

File Size:

603.77 KB

Description:

N-channel mosfet.
