AFP2307A Datasheet, Mosfet, Alfa-MOS

AFP2307A Features

  • Mosfet -20V/-1.2A, RDS(ON)= 520 mΩ@ VGS =-4.5V -20V/-1.0A, RDS(ON)= 870 mΩ@ VGS =-2.5V Super high density cell design for extremely low RDS (ON) Exceptional on-resistance and maximum DC curren

PDF File Details

Part number:

AFP2307A

Manufacturer:

Alfa-MOS

File Size:

708.41kb

Download:

📄 Datasheet

Description:

P-channel mosfet. AFP2307A, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These dev

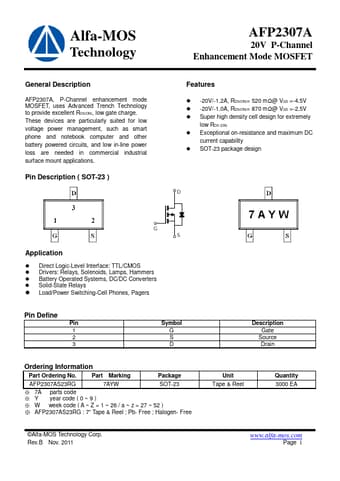

Datasheet Preview: AFP2307A 📥 Download PDF (708.41kb)
Page 2 of AFP2307A Page 3 of AFP2307A

AFP2307A Application

  • Applications Pin Description ( SOT-23 ) AFP2307A 20V P-Channel Enhancement Mode MOSFET Features -20V/-1.2A, RDS(ON)= 520 mΩ@ VGS =-4.5V -20V/-1.0A
