AFP2311A

20V P-Channel Enhancement Mode MOSFET

AFP2311A Features

* -20V/-2.8A,RDS(ON)=55mΩ@VGS=4.5V -20V/-2.2A,RDS(ON)=70mΩ@VGS=2.5V -20V/-1.8A,RDS(ON)=92mΩ@VGS=1.8V Super high density cell design for extremely low RDS (ON) Exceptional on-resistance and maximum DC current capability SOT-23 package design Application Portable Equipment Battery Powered System Net Wo

AFP2311A General Description

AFP2311A, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, such as smart phone and notebook computer and other battery powered circuits, and low in-line power loss.

AFP2311A Datasheet (621.26 KB)

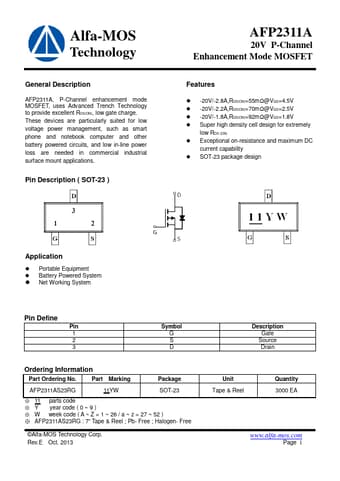

Preview of AFP2311A PDF

Datasheet Details

Part number:

AFP2311A

Manufacturer:

Alfa-MOS

File Size:

621.26 KB

Description:

20v p-channel enhancement mode mosfet.
