AFP2301AS Datasheet, Mosfet, Alfa-MOS

AFP2301AS Features

• Mosfet
• ID=-3.0A,RDS(ON)=90mΩ@VGS=-4.5V
• ID=-2.4A,RDS(ON)=110mΩ@VGS=-2.5V
• Super high density cell design for extremely low RDS (ON)
• Exceptional on-resista

PDF File Details

Part number:

AFP2301AS

Manufacturer:

Alfa-MOS

File Size:

452.26kb

Download:

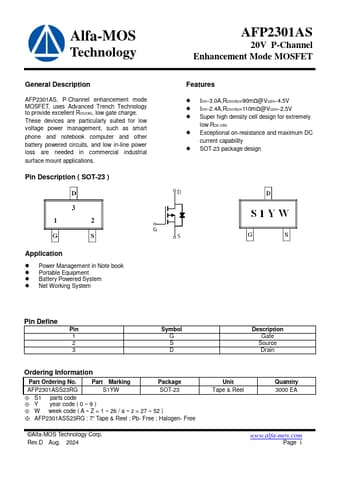

📄 Datasheet

Description:

20v p-channel mosfet. AFP2301AS, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These de

AFP2301AS Application

• Applications Pin Description ( SOT-23 ) AFP2301AS 20V P-Channel Enhancement Mode MOSFET Features
• ID=-3.0A,RDS(ON)=90mΩ@VGS=-4.5V
