AFP2325A Datasheet, Mosfet, Alfa-MOS

AFP2325A Features

• Mosfet z -100V/-1.0A,RDS(ON)=600mΩ@VGS=-10V z -100V/-0.5A,RDS(ON)=650mΩ@VGS=-4.5V z Super high density cell design for extremely low RDS (ON) z Exceptional on-resistance and maximum DC current

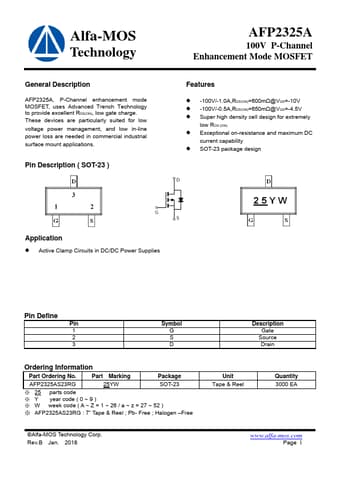

PDF File Details

Part number:

AFP2325A

Manufacturer:

Alfa-MOS

File Size:

499.60kb

Download:

📄 Datasheet

Description:

P-channel mosfet. AFP2325A, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These dev

AFP2325A Application

• Applications Pin Description ( SOT-23 ) AFP2325A 100V P-Channel Enhancement Mode MOSFET Features z -100V/-1.0A,RDS(ON)=600mΩ@VGS=-10V z -100V/-0.5
