AO3406 30V N-Channel MOSFET

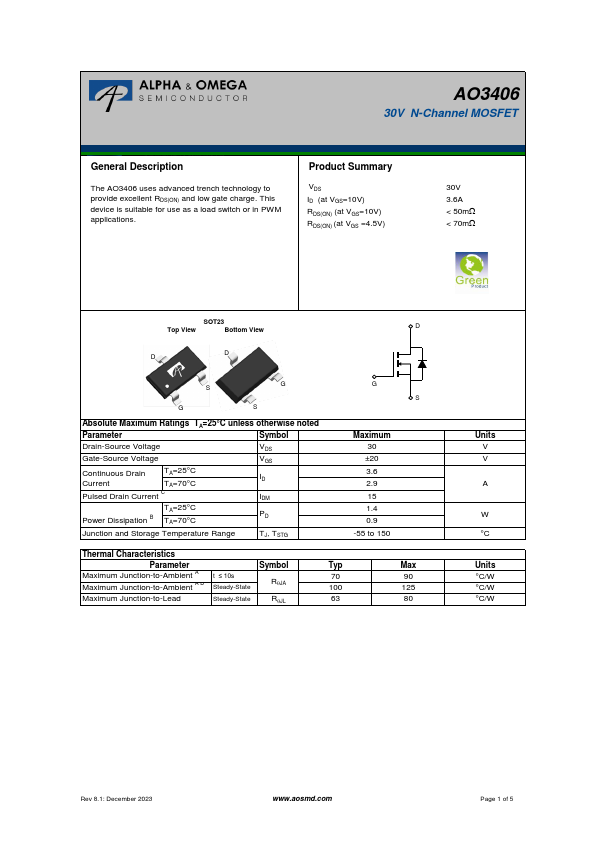

📥 Download Datasheet  Datasheet Preview Page 1

Description

AO3406 30V N-Channel MOSFET General .
The AO3406 uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

📥 Download Datasheet

Preview of AO3406 PDF

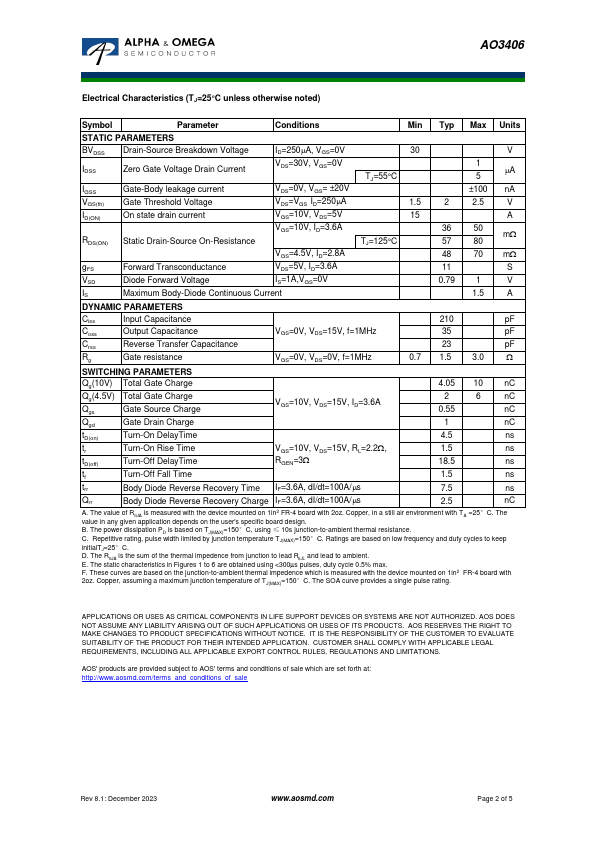

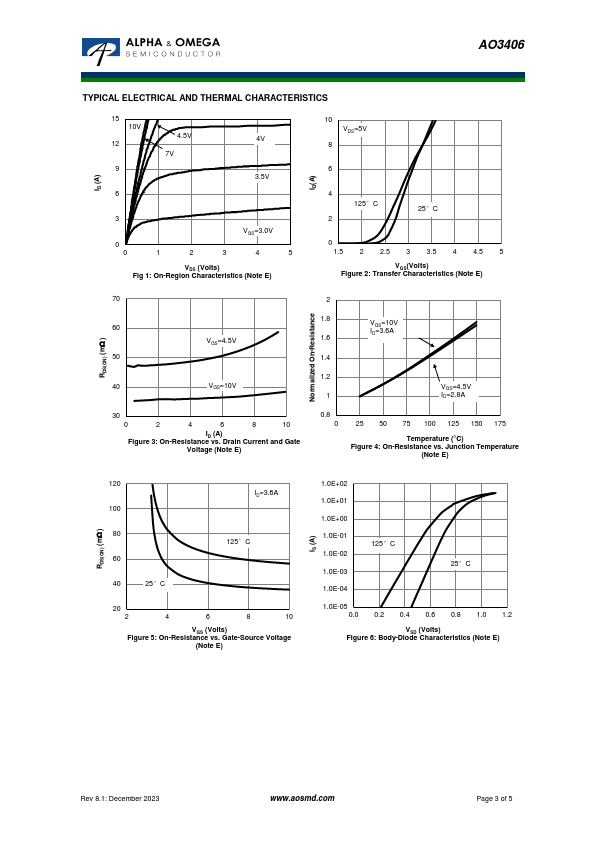

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AO3406
Manufacturer
Alpha & Omega Semiconductors
File Size
313.11 KB
Datasheet
AO3406_AlphaOmegaSemiconductors.pdf
Description
30V N-Channel MOSFET

Applications

* Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS =4.5V) 30V 3.6A < 50mW < 70mW SOT23 Top View Bottom View D D D S G G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Dra
