AO3414 - 20V N-Channel MOSFET

Datasheet Summary

Description

The AO3414 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V.

This device is suitable for use as a load switch or in PWM applications.

Features

  • VDS = 20V ID = 3A RDS(ON) < 62mW RDS(ON) < 70mW RDS(ON) < 85mW (VGS = 4.5V) (VGS = 4.5V) (VGS = 2.5V) (VGS = 1.8V) SOT23 Top View Bottom View D D D S G G S G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TA=25°C Current A TA=70°C ID Pulsed Drain Current B IDM TA=25°C Power Dissipation A TA=70°C PD Junction and Storage Temperature Range TJ, TSTG Maximum 20 ±8 3 2.5 16 1.4 0.9 -.

📥 Download Datasheet

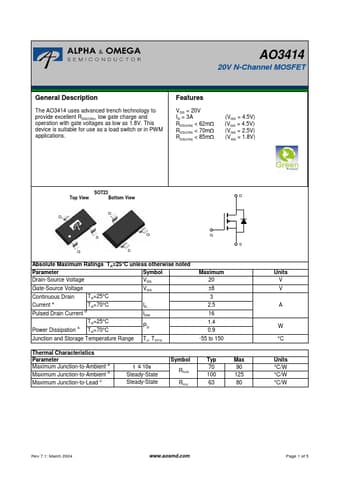

Datasheet preview – AO3414
