AO3442 - 100V N-Channel MOSFET

Product Overview

📥 Download Datasheet

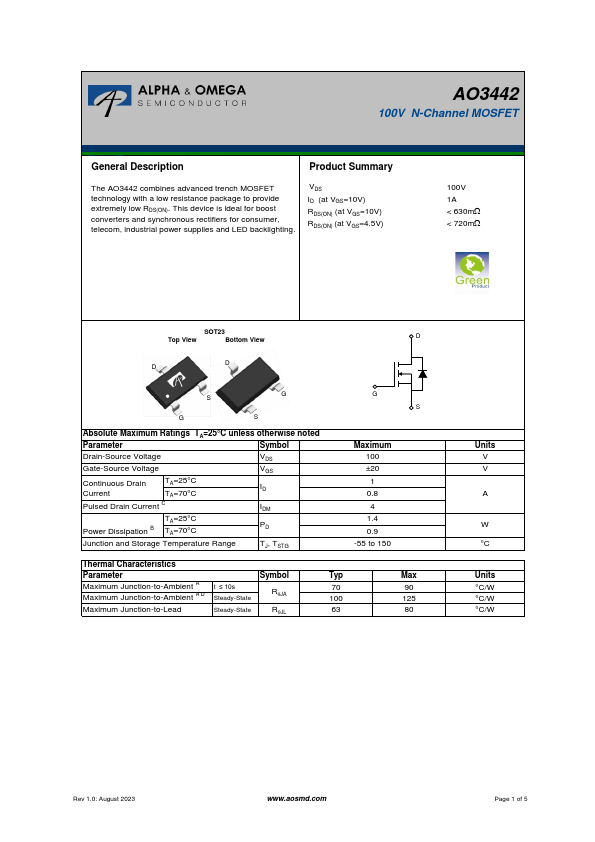

Datasheet preview – AO3442

Datasheet Details

Part number AO3442
Manufacturer Alpha & Omega Semiconductors
File Size 347.90 KB
Description 100V N-Channel MOSFET
Datasheet download datasheet AO3442 Datasheet

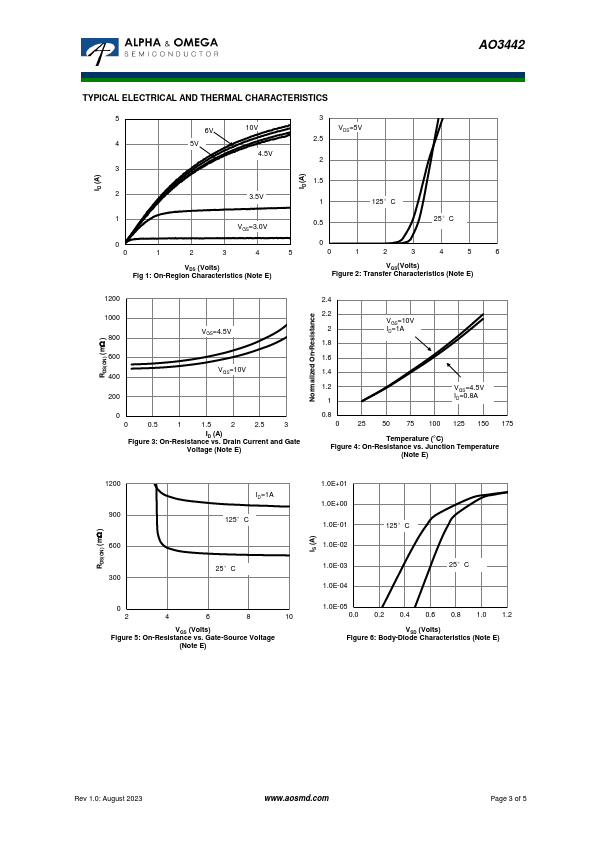

Additional preview pages of the AO3442 datasheet.

Product details

Description

Product Summary The AO3442 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).This device is ideal for boost converters and synchronous rectifiers for consumer, telecom, industrial power supplies and LED backlighting.VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 100V 1A < 630mW < 720mW SOT23 Top View Bottom View D D D S G G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-So
