AO8701, P-Channel Enhancement Mode Field Effect Transistor

www.DataSheet4U.com Rev 1: Oct 2004 AO8701, AO8701L ( Green Product ) P-Channel Enhancement Mode Field Effect Transistor with Schottky Diode General.
The AO8701 uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

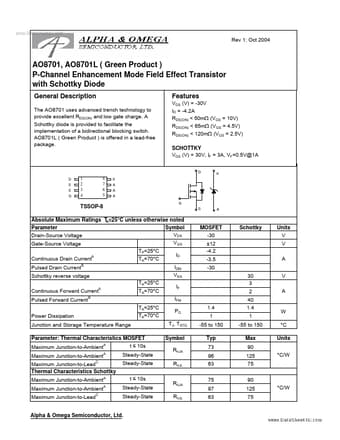

datasheet Preview Page 1 from Datasheet4u.com

AO8701_AlphaOmegaSemiconductors.pdf

AO8701 Datasheet Preview — Preview of AO8701 PDF

Datasheet Details

Part number:

AO8701

Manufacturer:

Alpha & Omega Semiconductors

File Size:

158.51 KB

Description:

P-Channel Enhancement Mode Field Effect Transistor

Features

* VDS (V) = -30V ID = -4.2A RDS(ON) < 50mΩ (VGS = 10V) RDS(ON) < 65mΩ (VGS = 4.5V) RDS(ON) < 120mΩ (VGS = 2.5V) SCHOTTKY VDS (V) = 30V, IF = 3A, VF=0.5V@1A D K D S S G 1 2 3 4 8 7 6 5 K A A A G S A TSSOP-8 Absolute Maximum Ratings T A=25°C unless otherwise noted Parameter Symbol VDS Drain-Source
