AON1605 Datasheet - Alpha & Omega Semiconductors

AON1605 20V P-Channel MOSFET

The AON1605 utilize advanced trench MOSFET technology in small DFN 1.0 x 0.6 package. This device is ideal for load switch applications. Product Summary VDS ID (at VGS=-4.5V) RDS(ON) (at VGS =-4.5V) RDS(ON) (at VGS =-2.5V) RDS(ON) (at VGS =-1.8V) -20V -0.7A < 710mΩ < 930mΩ < 1250mΩ Typical ESD pro.

AON1605_AlphaOmegaSemiconductors.pdf

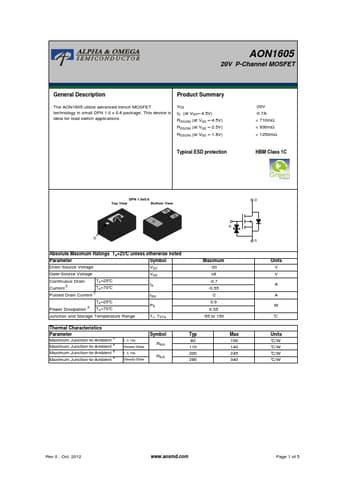

Preview of AON1605 PDF
AON1605 Datasheet Preview Page 2 AON1605 Datasheet Preview Page 3

Datasheet Details

Part number:

AON1605

Manufacturer:

Alpha & Omega Semiconductors

File Size:

322.64 KB

Description:

20v p-channel mosfet.
