The AON6560 by Alpha & Omega Semiconductors is a 30V N-Channel MOSFET. Below is the official datasheet preview.
| Part number | AON6560 |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors |
| File Size | 340.43 KB |
| Description | 30V N-Channel MOSFET |
| Datasheet |

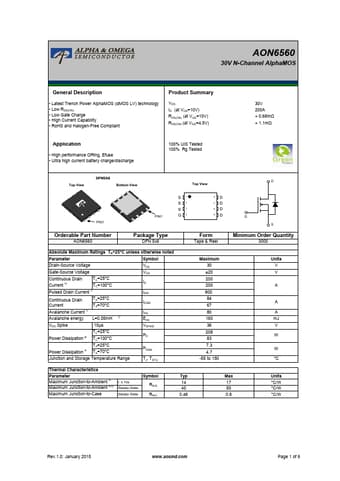

 AON6560-AlphaOmegaSemiconductors.pdf
|
|
|
Latest Trench Power AlphaMOS (αMOS LV) technology Low RDS(ON) Low Gate Charge High Current Capability RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 30V 200A < 0.68mΩ < 1.1mΩ Application High performance ORing, Efuse Ultra high current battery charge/discharge 100% UIS Tested 100% Rg Tested DFN5X6 D Top View Bottom View Top View PIN1 1 8 2 7 3 6 P
