AON6566 - 30V N-Channel AlphaMOS

The AON6566 by Alpha & Omega Semiconductors is a 30V N-Channel AlphaMOS. Below is the official datasheet preview.

📥 Download Datasheet

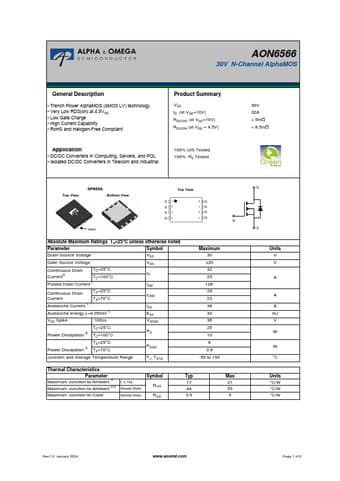

Official preview page of the AON6566 30V N-Channel AlphaMOS datasheet (Alpha & Omega Semiconductors).

Datasheet Details

Part number AON6566
Manufacturer Alpha & Omega Semiconductors
File Size 416.60 KB
Description 30V N-Channel AlphaMOS
Datasheet download datasheet AON6566_AlphaOmegaSemiconductors.pdf
Additional preview pages of the AON6566 datasheet.

AON6566 Product details

Description

Trench Power AlphaMOS (αMOS LV) technology Very Low RDS(on) at 4.5VGS Low Gate Charge High Current Capability RoHS and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) Application DC/DC Converters in Computing, Servers, and POL Isolated DC/DC Converters in Telecom and Industrial 100% UIS Tested 100% Rg Tested 30V 32A < 5mW < 8.5mW Top View DFN5X6 Bottom View PIN1 T
