AFM04P2-000 - Power GaAs MESFET

Alpha Industries

📥 Download Datasheet

AFM04P2-000 Datasheet Preview — Preview of AFM04P2-000 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AFM04P2-000
Manufacturer	Alpha Industries
File Size	43.03 KB
Description	Power GaAs MESFET
Datasheet	AFM04P2-000_AlphaIndustries.pdf

AFM04P2-000 Product details

Description

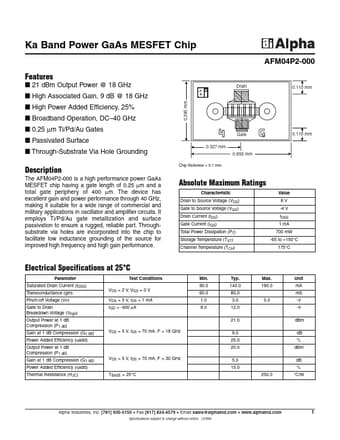

The AFM04P2-000 is a high performance power GaAs MESFET chip having a gate length of 0.25 µm and a total gate periphery of 400 µm.

Features

I 21 dBm Output Power @ 18 GHz I High Associated Gain, 9 dB @ 18 GHz I High Power Added Efficiency, 25% I Broadband Operation, DC.
40 GHz I 0.25 µm Ti/Pd/Au Gates I Passivated Surface I Through-Substrate Via Hole Grounding 0.327 mm 0.655 mm Chip thickness = 0.1 mm. Drain 0.110 mm 0.395 mm Gate 0.110 mm.
