AFM04P3-212 - Power GaAs MESFET

Alpha Industries

📥 Download Datasheet

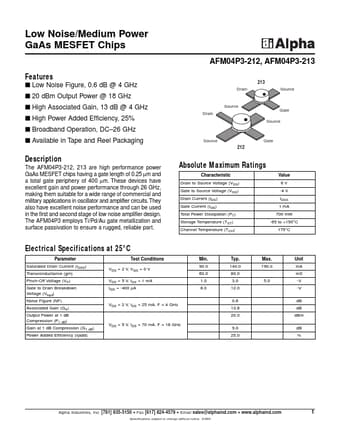

AFM04P3-212 Datasheet Preview — Preview of AFM04P3-212 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AFM04P3-212
Manufacturer	Alpha Industries
File Size	25.99 KB
Description	Power GaAs MESFET
Datasheet	AFM04P3-212_AlphaIndustries.pdf

AFM04P3-212 Product details

Description

The AFM04P3-212, 213 are high performance power GaAs MESFET chips having a gate length of 0.25 µm and a total gate periphery of 400 µm.

Features

s Low Noise Figure, 0.6 dB @ 4 GHz s 20 dBm Output Power @ 18 GHz s High Associated Gain, 13 dB @ 4 GHz s High Power Added Efficiency, 25% s Broadband Operation, DC.
26 GHz s Available in Tape and Reel Packaging Source 212 Gate Drain Source Gate Source Drain 213 Source.
