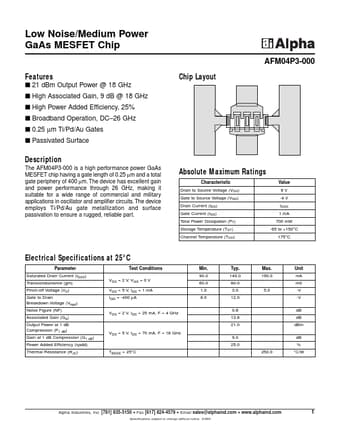

AFM04P3-000 Datasheet, Mesfet, Alpha Industries

AFM04P3-000 Features

• Mesfet s 21 dBm Output Power @ 18 GHz s High Associated Gain, 9 dB @ 18 GHz s High Power Added Efficiency, 25% s Broadband Operation, DC
    –26 GHz s 0.25 µm Ti/Pd/Au Gates s Passi

PDF File Details

Part number:

AFM04P3-000

Manufacturer:

Alpha Industries

File Size:

15.66kb

Download:

📄 Datasheet

Description:

Power gaas mesfet. The AFM04P3-000 is a high performance power GaAs MESFET chip having a gate length of 0.25 µm and a total gate periphery of 400 µm. Th

AFM04P3-000 Application

• Applications in oscillator and amplifier circuits. The device employs Ti/Pd/Au gate metallization and surface passivation to ensure a rugged, reliab
