AFM06P3-212 - Power GaAs MESFET

Alpha Industries

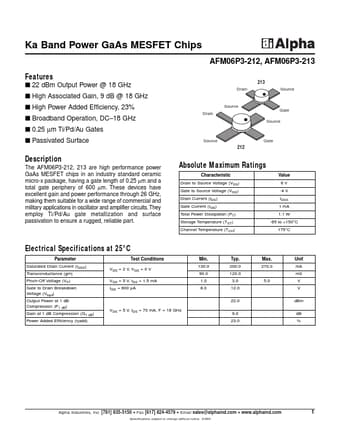

AFM06P3-212 Datasheet Preview — Preview of AFM06P3-212 PDF

Datasheet Details

Part number	AFM06P3-212
Manufacturer	Alpha Industries
File Size	25.51 KB
Description	Power GaAs MESFET
Datasheet	AFM06P3-212_AlphaIndustries.pdf

AFM06P3-212 Product details

Description

The AFM06P3-212, 213 are high performance power GaAs MESFET chips in an industry standard ceramic micro-x package, having a gate length of 0.25 µm and a total gate periphery of 600 µm.

Features

s 22 dBm Output Power @ 18 GHz s High Associated Gain, 9 dB @ 18 GHz s High Power Added Efficiency, 23% s Broadband Operation, DC.
18 GHz s 0.25 µm Ti/Pd/Au Gates s Passivated Surface Source 212 Gate Drain Source Gate Source Drain 213 Source.
