AM480234G1TMCW-00

LCD Module

AM480234G1TMCW-00 Features

* Ampire 7 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) module for video equipments. This module is composed of a 7” TFT-LCD panel, a driver circuit and backlight unit. (1) Construction: 7” a-Si color TFT-LCD, White CCFL Backlight and PCB. (2) Resolution (pixel): 480(R.G.B) X2

AM480234G1TMCW-00 General Description

1 GND - Ground for logic circuit 2 VCC I Supply voltage of logic control circuit for scan drive 3 VGL I Negative power for scan driver 4 VGH I Positive power for scan driver 5 STVR I/O Vertical start pulse 6 STVL I/O Vertical start pulse 7 CKV I Shift clock input for scan driver 8 U/D I UP/DOWN s.

AM480234G1TMCW-00 Datasheet (1.00 MB)

Preview of AM480234G1TMCW-00 PDF

Datasheet Details

Part number:

AM480234G1TMCW-00

Manufacturer:

Ampire

File Size:

1.00 MB

Description:

Lcd module.

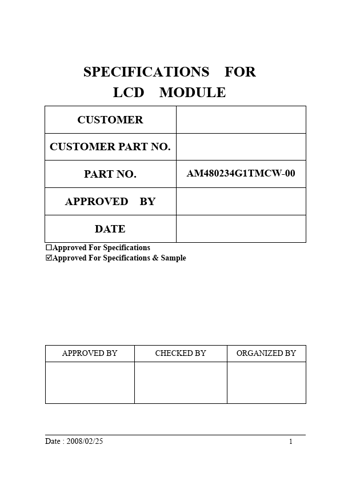

SPECIFICATIONS FOR LCD MODULE CUSTOMER CUSTOMER PART NO. PART NO. AM480234G1TMCW-00 APPROVED BY DATE Approved For Specifications Approved For Sp.
