AM480272H3TMQW-TW0H LCD Module

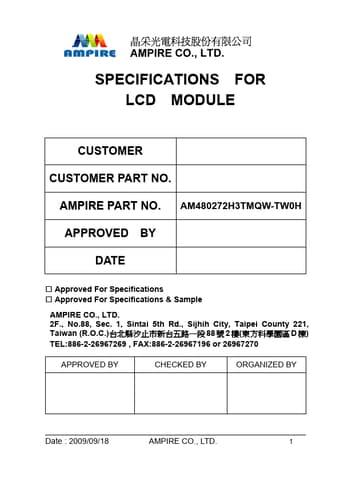

SPECIFICATIONS FOR LCD MODULE CUSTOMER CUSTOMER PART NO. AMPIRE PART NO. AM480272H3TMQW-TW0H APPROVED BY DATE Approved For Specifications Approved For Specifications & Sample AMPIRE CO., LTD. 2F., No.88, Sec. 1, Sintai 5th Rd., Sijhih City, Taipei County 221, Taiwan (R.O.C.) 88 2 ( D) TEL:886-2-26967269 , FAX:886-2-26967196 or 26967270 APPROVED BY CHECKED BY ORGANIZED BY Date : 2009/09/18 AMPIRE CO., LTD. 1 Revision Date Page 2009/09/18 RECORD OF REVISION Contents New R.

AM480272H3TMQW-TW0H Features

* 4.3 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) module. This module is composed of a 4.3” TFT-LCD panel, LCD controller, power driver circuit, touch panel and backlight unit. 1.1 TFT Panel Feature : (1) Construction: 4.3” a-Si color TFT-LCD, White LED Backlight and PCB. (2)
