AM480234G1TMQW-00 - TFT Module

Ampire

📥 Download Datasheet

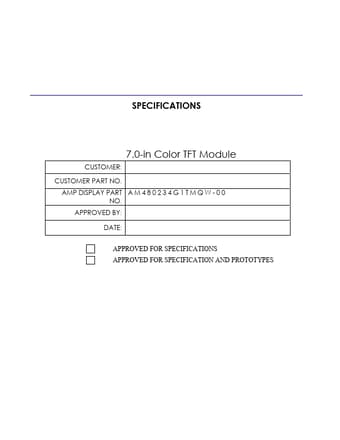

AM480234G1TMQW-00 Datasheet Preview — Preview of AM480234G1TMQW-00 PDF

Datasheet Details

Part number	AM480234G1TMQW-00
Manufacturer	Ampire
File Size	1.00 MB
Description	TFT Module
Datasheet	AM480234G1TMQW-00-Ampire.pdf

AM480234G1TMQW-00 Product details

Description

1 GND - Ground for logic circuit 2 VCC I Supply voltage of logic control circuit for scan drive 3 VGL I Negative power for scan driver 4 VGH I Positive power for scan driver 5 STVR I/O Vertical start pulse 6 STVL I/O Vertical start pulse 7 CKV I Shift clock input for scan driver 8 U/D I UP/DOWN scan control input 9 OEV I Output enable input for scan driver 10 VCOM I Common electrode driving signal 11 VCOM I Common electrode driving signal 12 L/R I LEFT/RIGHT scan control input 13 MOD

Features

Ampire 7 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) module for video equipments. This module is composed of a 7” TFT-LCD panel, a driver circuit and backlight unit. (1) Construction: 7” a-Si color TFT-LCD, White LED Backlight and PCB. (2) Resolution (pixel): 480(R. G. B) X234 2 Physical specifications Item Display resolution(dot) Active area Screen size Dot pitch Color configuration Overall dimension Weight Backlight unit Specifications 1440 (W) x 234(H) 154.08 (W) x.
