AM480234A - LCD Module

Ampire

The AM480234A by Ampire is a LCD Module. Below is the official datasheet preview.

📥 Download Datasheet

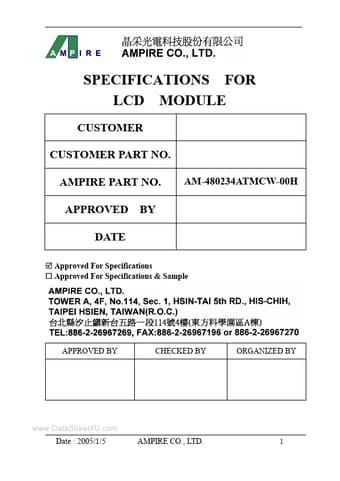

AM480234A LCD Module by Ampire - Datasheet Preview — Official preview page of the **AM480234A** LCD Module datasheet (Ampire).

Datasheet Details

Part number	AM480234A
Manufacturer	Ampire
File Size	1.42 MB
Description	LCD Module
Datasheet	AM480234A_Ampire.pdf
Additional preview pages of the AM480234A datasheet.

AM480234A Product details

Description

Remark 1 GND - Ground for logic circuit 2 VCC I Supply voltage of logic control circuit for scan drive 3 VGL I Negative power for scan driver 4 VGH I Positive power for scan driver 5 STVR I/O Vertical start pulse Note 1 6 STVL I/O Vertical start pulse Note 1 7 CKV I Shift clock input for scan driver 8 U/D I UP/DOWN scan control input Note 1,2 9 OEV I Output enable input for scan driver 10 VCOM I Common electrode driving signal 11 VCOM I Common electrode driving signal 12 L/R I LEFT/RIGHT scan co

Features

7 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) module for video equipments. This module is composed of a 7” TFT-LCD panel, a driver circuit and backlight unit. (1) Construction: 7” a-Si color TFT-LCD, White CCFL Backlight and PCB. (2) Resolution (pixel): 480(R. G. B) X234 2 Physical specifications Item Display resolution(dot) Active area Screen size Dot pitch Color configuration Overall dimension Weight Surface treatment Backlight unit Specifications 1440 (W) x 234(H) 156.
