AM4811P P-Channel MOSFET

Analog Power

AM4811P Description

Analog Power P-Channel 30-V (D-S) MOSFET Key .

AM4811P Features

* Low rDS(on) trench technology
* Low thermal impedance

AM4811P Applications

* Load Switches
* DC/DC Conversion
* Motor Drives AM4811P VDS (V) -30 PRODUCT SUMMARY rDS(on) (mΩ) 30 @ VGS = -10V 52 @ VGS = -4.5V ID (A) -8.3 -6.4 SO-8 ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage VDS -30

📥 Download Datasheet

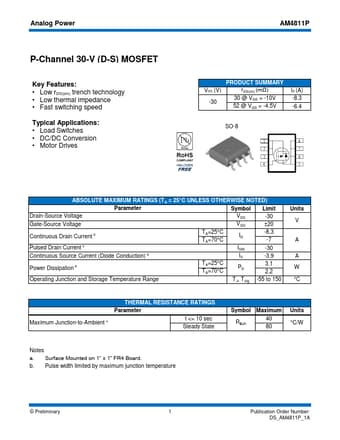

AM4811P Datasheet Preview — Preview of AM4811P PDF

Datasheet Details

Part number: AM4811P
Manufacturer: Analog Power
File Size: 389.27 KB
Datasheet: AM4811P-AnalogPower.pdf
Description: P-Channel MOSFET
