AM4812 Datasheet, Mosfet, AiT Semiconductor

AM4812 Features

  • Mosfet
  • 30V / 7.8A, RDS(ON) = 16mΩ (typ.)@VGS = 10V
  • 30V / 5.8A, RDS(ON) = 22mΩ (typ.)@VGS = 4.5V
  • Super high density cell design for extremely low RDS(ON)

PDF File Details

Part number:

AM4812

Manufacturer:

AiT Semiconductor

File Size:

456.59kb

Download:

📄 Datasheet

Description:

30v n-channel enhancement mode mosfet. The AM4812 is the N-Channel logic enhancement mode power field effect transistor which is produced using high cell density. Advanced

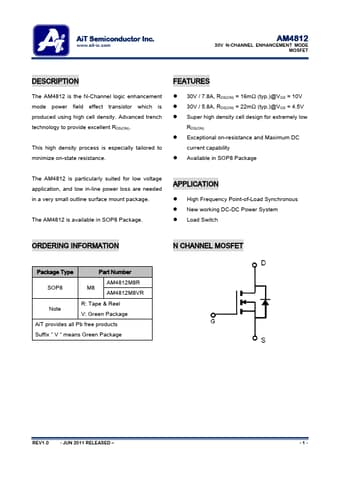

Datasheet Preview: AM4812 📥 Download PDF (456.59kb)
Page 2 of AM4812 Page 3 of AM4812

AM4812 Application

  • Applications devices or systems or other critical applications. Use of AiT products in such applications is understood to be fully at the risk of t

TAGS

AM4812
30V
N-CHANNEL
ENHANCEMENT
MODE
MOSFET
AiT Semiconductor
