BLF6G38-25, Power LDMOS transistor

BLF6G38-25; BLF6G38S-25 WiMAX power LDMOS transistor Rev.4 * 1 September 2015 Product data sheet 1.Product profile 1.1 General descripti.
25 W LDMOS power transistor for base station applications at frequencies from 3400 MHz to 3800 MHz.

BLF6G38-25-Ampleon.pdf

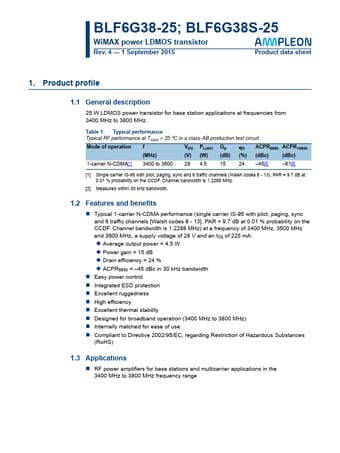

BLF6G38-25 Datasheet Preview — Preview of BLF6G38-25 PDF

Datasheet Details

Part number:

BLF6G38-25

Manufacturer:

Ampleon

File Size:

400.41 KB

Description:

Power LDMOS transistor

Features

* Typical 1-carrier N-CDMA performance (single carrier IS-95 with pilot, paging, sync and 6 traffic channels [Walsh codes 8 - 13]. PAR = 9.7 dB at 0.01 % probability on the CCDF. Channel bandwidth is 1.2288 MHz) at a frequency of 3400

Applications

* at frequencies from 3400 MHz to 3800 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a class-AB production test circuit. Mode of operation f VDS PL(AV) Gp D ACPR885k ACPR1980k (MHz) (V) (W) (dB) (%) (dBc) (dBc) 1-carrier N-CDMA[1] 3400 to 3600 28 4.5 15 24 45[2
