BLF6G38-50 Power LDMOS transistor

Ampleon

Description

BLF6G38-50; BLF6G38LS-50 WiMAX power LDMOS transistor Rev.3 * 1 September 2015 Product data sheet 1.Product profile 1.1 General descript.
50 W LDMOS power transistor for base station applications at frequencies from 3400 MHz to 3800 MHz.

📥 Download Datasheet

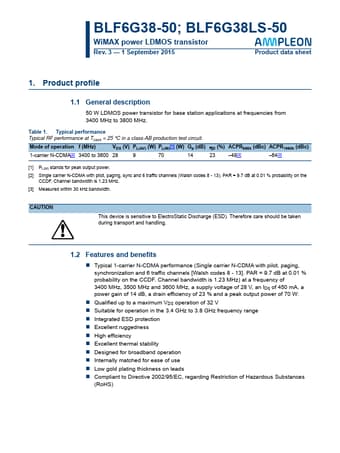

BLF6G38-50 Datasheet Preview — Preview of BLF6G38-50 PDF

Datasheet Specifications

Part number: BLF6G38-50
Manufacturer: Ampleon
File Size: 385.53 KB
Datasheet: BLF6G38-50-Ampleon.pdf
Description: Power LDMOS transistor

Features

* Typical 1-carrier N-CDMA performance (Single c

Applications

* at frequencies from 3400 MHz to 3800 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a class-AB production test circuit. Mode of operation f (MHz) VDS (V) PL(AV) (W) PL(M)[1] (W) Gp (dB) D (%) ACPR885k (dBc) ACPR1980k (dBc) 1-carrier N-CDMA[2] 3400 to 3600 28 9 7
