AD5669R, AD5629R dense DACs

AD5669R Description

INTERFACE LOGIC 08819-001 Data Sheet Octal, 12-/16-Bit, I2C, denseDACs with 5 ppm/°C On-Chip Reference AD5629R/AD5669R .
The AD5629R/AD5669R devices are low power, octal, 12-/16bit, buffered voltage-output DACs.

AD5669R Features

* Low power octal DACs AD5629R: 12 bits AD5669R: 16 bits 2.6 mm × 2.6 mm 16-ball WLCSP 4 mm × 4 mm 16-lead LFCSP and 16-lead TSSOP On-chip 1.25 V/2.5 V, 5 ppm/°C reference Power down to 400 nA at 5 V, 200 nA at 3 V 2.7 V to 5.5 V power supply Guaranteed monotonic by design Power-on reset to zero scale

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AD5669R, AD5629R. Please refer to the document for exact specifications by model.

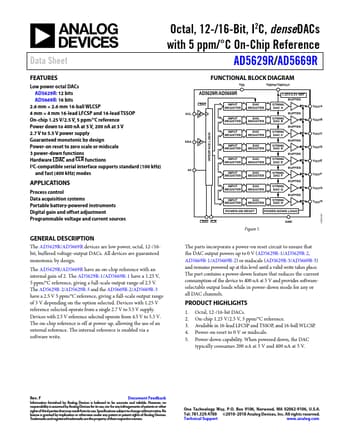

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AD5669R, AD5629R
Manufacturer
Analog Devices ↗
File Size
1.06 MB
Datasheet
AD5629R_AnalogDevices.pdf
Description
dense DACs
Note
This datasheet PDF includes multiple part numbers: AD5669R, AD5629R.
Please refer to the document for exact specifications by model.
