AD9233 - 1.8V Analog-to-Digital Converter

Name: AD9233
SKU: AD9233-568564

Analog Devices

📥 Download Datasheet

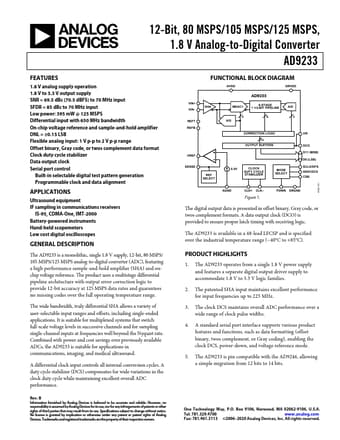

AD9233 Datasheet Preview — Preview of AD9233 PDF

Datasheet Details

Part number	AD9233
Manufacturer	Analog Devices
File Size	806.69 KB
Description	1.8V Analog-to-Digital Converter
Datasheet	AD9233_AnalogDevices.pdf

AD9233 Product details

Description

The AD9233 is a monolithic, single 1.8 V supply, 12-bit, 80 MSPS/ 105 MSPS/125 MSPS analog-to-digital converter (ADC), featuring a high performance sample-and-hold amplifier (SHA) and onchip voltage reference.

Features

1.8 V analog supply operation 1.8 V to 3.3 V output supply SNR = 69.5 dBc (70.5 dBFS) to 70 MHz input SFDR = 85 dBc to 70 MHz input Low power: 395 mW @ 125 MSPS Differential input with 650 MHz bandwidth On-chip voltage reference and sample-and-hold amplifier DNL = ±0.15 LSB Flexible analog input: 1 V p-p to 2 V p-p range Offset binary, Gray code, or twos complement data format Clock duty cycle stabilizer Data output clock Serial port control Built-in selectable digital test pattern generation Pr.
