AD9235 3V A/D Converter

AD9235 Description

Data Sheet .
The AD9235 is a family of monolithic, single 3 V supply, 12-bit, 20/40/65 MSPS analog-to-digital converters (ADCs).

AD9235 Features

* Single 3 V supply operation (2.7 V to 3.6 V) SNR = 70 dBc to Nyquist at 65 MSPS SFDR = 85 dBc to Nyquist at 65 MSPS Low power: 300 mW at 65 MSPS Differential input with 500 MHz bandwidth On-chip reference and SHA DNL = ±0.4 LSB Flexible analog input: 1 V p-p to 2 V p-p range Offset binary or twos co

📥 Download Datasheet

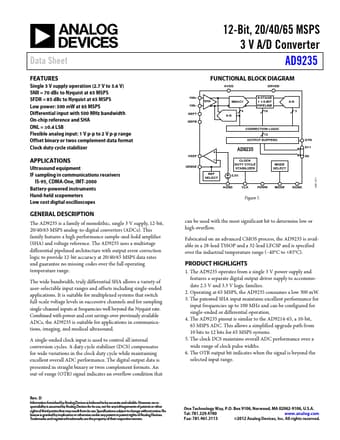

Preview of AD9235 PDF
