AD9236 - A/D Converter

Name: AD9236
SKU: AD9236-580708

Analog Devices

📥 Download Datasheet

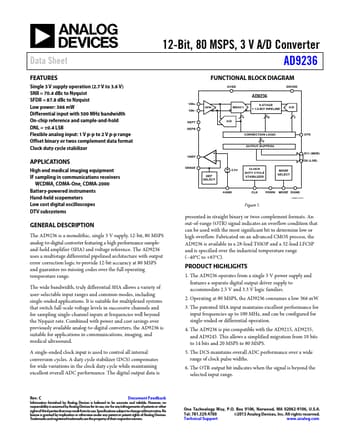

AD9236 Datasheet Preview — Preview of AD9236 PDF

Datasheet Details

Part number	AD9236
Manufacturer	Analog Devices
File Size	1.18 MB
Description	A/D Converter
Datasheet	AD9236_AnalogDevices.pdf

AD9236 Product details

Description

The AD9236 is a monolithic, single 3 V supply, 12-bit, 80 MSPS analog-to-digital converter featuring a high performance sampleand-hold amplifier (SHA) and voltage reference.

Features

Single 3 V supply operation (2.7 V to 3.6 V) SNR = 70.4 dBc to Nyquist SFDR = 87.8 dBc to Nyquist Low power: 366 mW Differential input with 500 MHz bandwidth On-chip reference and sample-and-hold DNL = ±0.4 LSB Flexible analog input: 1 V p-p to 2 V p-p range Offset binary or twos complement data format Clock duty cycle stabilizer.
