Part number: AD9237
Manufacturer: Analog Devices (https://www.analog.com/)
File Size: 656.12KB
Download: 📄 Datasheet
Description: Low Power A/D Converter
Ultralow power 85 mW at 20 MSPS 135 mW at 40 MSPS 190 mW at 65 MSPS
SNR = 66 dBc to Nyquist at 65 MSPS SFDR = 80 dBc to Nyquist at 65 MSPS DNL = ±0.7 LSB Differential inp.
Ultrasound and medical imaging Battery-powered instruments Hand-held scope meters Low cost digital oscilloscopes Low pow.

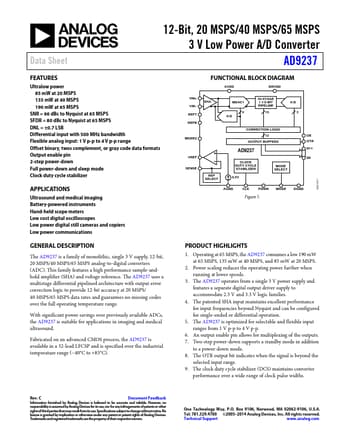

The AD9237 is a family of monolithic, single 3 V supply, 12-bit, 20 MSPS/40 MSPS/65 MSPS analog-to-digital converters (ADC). This family features a high performance sample-andhold amplifier (SHA) and voltage reference. The AD9237 uses a multistage di.
