ADA4417-3 Datasheet, Filter, Analog Devices

ADA4417-3 Features

  • Filter Optimized for high definition video Sixth-order Butterworth filters
  • 1 dB bandwidth of 38 MHz 44 dB rejection at 75 MHz 5 ns group delay variation Fixed throughput gain of ×2 0.

PDF File Details

Part number:

ADA4417-3

Manufacturer:

Analog Devices ↗

File Size:

404.91kb

Download:

📄 Datasheet

Description:

Integrated triple video filter. The ADA4417-3 is a low cost, fully integrated, video reconstruction filter specifically designed for consumer high definition video.

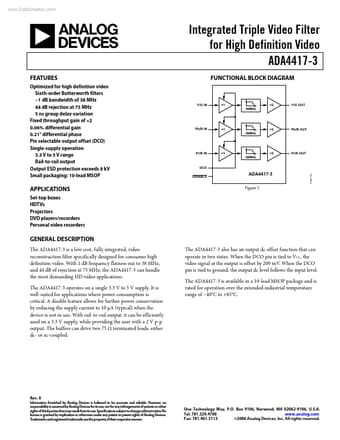

Datasheet Preview: ADA4417-3 📥 Download PDF (404.91kb)
Page 2 of ADA4417-3 Page 3 of ADA4417-3

ADA4417-3 Application

  • Applications Set-top boxes HDTVs Projectors DVD players/recorders Personal video recorders GENERAL DESCRIPTION The ADA4417-3 is a low cost, fully i
