ADA4424-6 Datasheet, Filter, Analog Devices

ADA4424-6 Features

  • Filter 3 SD channels; 18 MHz typical 1 dB bandwidth (BW) 3 ED/HD channels; 25 MHz/34 MHz typical 1 dB BW Fixed gain of 6.2 dB (2.042 V/V) On-board negative supply for output coupling without c

PDF File Details

Part number:

ADA4424-6

Manufacturer:

Analog Devices ↗

File Size:

488.21kb

Download:

📄 Datasheet

Description:

6-channel sd/ed/hd video filter. The ADA4424-6 is a high performance video reconstruction filter specifically designed for consumer applications. It consists of a www

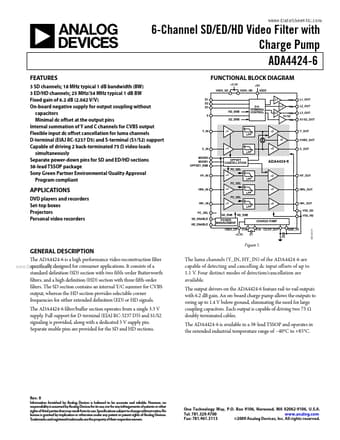

Datasheet Preview: ADA4424-6 📥 Download PDF (488.21kb)
Page 2 of ADA4424-6 Page 3 of ADA4424-6

ADA4424-6 Application

  • Applications DVD players and recorders Set-top boxes Projectors Personal video recorders HPb_IN ×1 LPF FC_SEL ×2 HPb_OUT HPr_IN FC_SEL SD_ENABL
