ADA4420-6

Low Cost 6-Channel HD/SD Video Filter

ADA4420-6 Features

* Sixth-order filters Transparent input sync tip clamp

* 1 dB bandwidth of 26 MHz typical for HD HD rejection @ 75 MHz: 48 dB typical NTSC differential gain: 0.19% NTSC differential phase: 0.76° Rail-to-rail outputs Low quiescent current: 32 mA typical Disable feature Output dc offset APPLICATI

ADA4420-6 General Description

The ADA4420-6 is a low cost video reconstruction filter specifically designed for consumer applications. It consists of six independent sixth-order Butterworth filters/buffers, three for standard definition (Y/C or CVBS) and three for high definition component signals (YPrPb or RGB). The ADA4420-6 o.

ADA4420-6 Datasheet (297.85 KB)

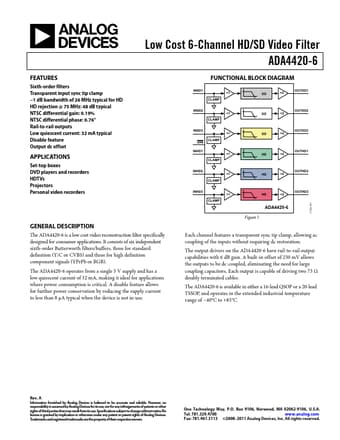

Preview of ADA4420-6 PDF

Datasheet Details

Part number:

ADA4420-6

Manufacturer:

Analog Devices ↗

File Size:

297.85 KB

Description:

Low cost 6-channel hd/sd video filter.
