ADA4522-1 - Rail-to-Rail Output Operational Amplifier

This page provides the datasheet information for the ADA4522-1, a member of the ADA4522-2 Rail-to-Rail Output Operational Amplifier family.

Datasheet Summary

Description

The ADA4522-1/ADA4522-2/ADA4522-4 are single/dual/quad channel, zero drift op amps with low noise and power, ground sensing inputs, and rail-to-rail output, optimized for total accuracy over time, temperature, and voltage conditions.

Features

Low offset voltage: 5 µV maximum.
Extremely low offset voltage drift: 22 nV/°C maximum.
Low voltage noise density: 5.8 nV/√Hz typical.
117 nV p-p typical from 0.1 Hz to 10 Hz.
Low input bias current: 50 pA typical.
Unity-gain crossover: 3 MHz typical.
Single-supply operation: input voltage range includes ground and rail-to-rail output.
Wide range of operating voltages.
Single-supply operation: 4.5 V to 55 V.
Dual-supply operation: ±2.25 V to ±27.

Datasheet Details

Part number	ADA4522-1
Manufacturer	Analog Devices
File Size	1.88 MB
Description	Rail-to-Rail Output Operational Amplifier
Datasheet	ADA4522-1 Datasheet
Additional preview pages of the ADA4522-1 datasheet.

📁 Similar Datasheet

ADA4543 - Silicon Bipolar Darlington Amplifier (Hewlett-Packard)

ADA4743 - Silicon Bipolar Darlington Amplifier (agilent)

ADA-4543 - Silicon Bipolar Darlington Amplifier (Hewlett-Packard)

ADA-4543 - Silicon Bipolar Darlington Amplifier (AVAGO)

ADA-4643 - Silicon Bipolar Darlington Amplifier (Hewlett-Packard)

ADA-4643 - Silicon Bipolar Darlington Amplifier (AVAGO)

ADA-4743 - Silicon Bipolar Darlington Amplifier (Hewlett-Packard)

ADA-4743 - Silicon Bipolar Darlington Amplifier (AVAGO)

ADA-4789 - Silicon Bipolar Darlington Amplifier (AVAGO)

ADA-FLEX-30P-050-SET - FFC Anschulssadapter (ES&S)

Full PDF Text Transcription

Click to expand full text

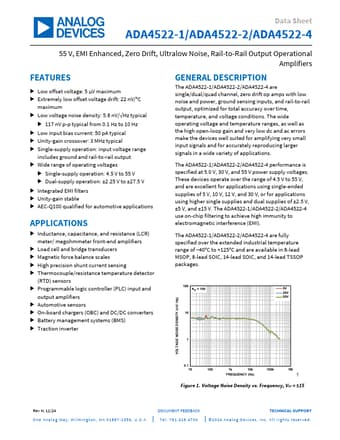

Data Sheet ADA4522-1/ADA4522-2/ADA4522-4 55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifiers FEATURES  Low offset voltage: 5 µV maximum  Extremely low offset voltage drift: 22 nV/°C maximum  Low voltage noise density: 5.8 nV/√Hz typical  117 nV p-p typical from 0.1 Hz to 10 Hz  Low input bias current: 50 pA typical  Unity-gain crossover: 3 MHz typical  Single-supply operation: input voltage range includes ground and rail-to-rail output  Wide range of operating voltages  Single-supply operation: 4.5 V to 55 V  Dual-supply operation: ±2.25 V to ±27.
