ADA4523-1 - Zero Drift Op Amp

The ADA4523-1 is a high voltage, low noise, zero drift op amp that offers precision dc performance over a wide supply range of 4.5 V to 36 V. Offset voltage and 1/f noise are suppressed, allowing this op amp to achieve a maximum offset voltage of ±4 µV and a 0.1 Hz to 10 Hz input noise voltage of 88.

ADA4523-1 Features

* Supply voltage range: 4.5 V to 36 V Offset voltage: ±4 µV maximum at 5 V Offset voltage drift: 0.01 µV/°C maximum at 5 V Input noise Voltage: 88 nV p-p from 0.1 Hz to 10 Hz typical Spectral density voltage: 4.2 nV/√Hz typical at 1 kHz Rail-to-rail output Unity-gain stable GBP: 5 MHz typical Slew rat

ADA4523-1-AnalogDevices.pdf

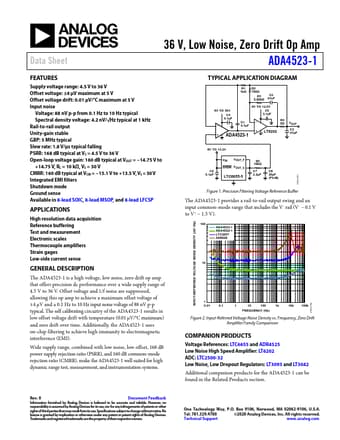

ADA4523-1 Datasheet Preview — Preview of ADA4523-1 PDF

Datasheet Details

Part number:

ADA4523-1

Manufacturer:

Analog Devices ↗

File Size:

916.91 KB

Description:

Zero drift op amp.
