ADA4522-4, ADA4522-2 Datasheet - Analog Devices

ADA4522-4 Rail-to-Rail Output Operational Amplifier

The ADA4522-1/ADA4522-2/ADA4522-4 are single/dual/quad channel, zero drift op amps with low noise and power, ground sensing inputs, and rail-to-rail output, optimized for total accuracy over time, temperature, and voltage conditions. The wide operating voltage and temperature ranges, as well as the .

ADA4522-4 Features

* Low offset voltage: 5 µV maximum

* Extremely low offset voltage drift: 22 nV/°C maximum

* Low voltage noise density: 5.8 nV/√Hz typical

* 117 nV p-p typical from 0.1 Hz to 10 Hz

* Low input bias current: 50 pA typical

* Unity-gain crossover: 3 MHz typical

* Single-suppl

ADA4522-2-AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: ADA4522-4, ADA4522-2. Please refer to the document for exact specifications by model.

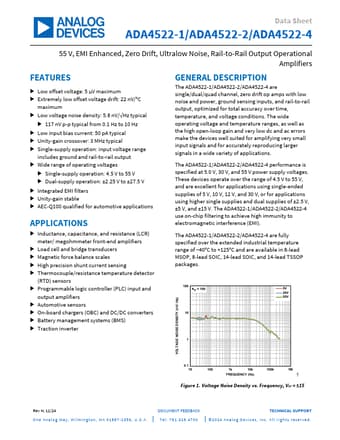

ADA4522-4 Datasheet Preview Page 2 ADA4522-4 Datasheet Preview Page 3

Datasheet Details

Part number:

ADA4522-4, ADA4522-2

Manufacturer:

Analog Devices ↗

File Size:

1.88 MB

Description:

Rail-to-rail output operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: ADA4522-4, ADA4522-2.
Please refer to the document for exact specifications by model.
