ADA4528-2, ADA4528-1 Datasheet - Analog Devices

ADA4528-2 Zero-Drift Op Amp

The ADA4528-1/ADA4528-2 are ultralow noise, zero-drift operational amplifiers featuring rail-to-rail input and output swing. With an offset voltage of 2.5 μV, offset voltage drift of 0.015 μV/°C, and typical noise of 97 nV p-p (0.1 H.

ADA4528-2 Features

* Low offset voltage: 2.5 µV maximum Low offset voltage drift: 0.015 μV/°C maximum Low noise 5.6 nV/√Hz at f = 1 kHz, AV = +100 97 nV p-p at f = 0.1 Hz to 10 Hz, AV = +100 Open-loop gain: 130 dB minimum CMRR: 135 dB minimum PSRR: 130 dB minimum Unity-gain crossover: 4 MHz Gain bandwidth product: 3 MHz

ADA4528-1_AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: ADA4528-2, ADA4528-1. Please refer to the document for exact specifications by model.

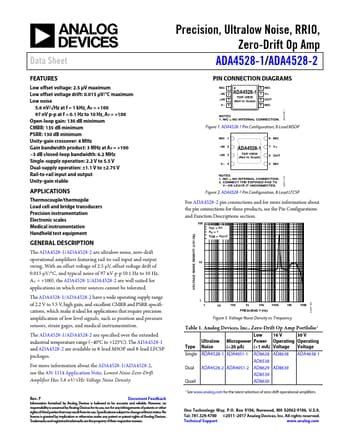

ADA4528-2 Datasheet Preview Page 2 ADA4528-2 Datasheet Preview Page 3

Datasheet Details

Part number:

ADA4528-2, ADA4528-1

Manufacturer:

Analog Devices ↗

File Size:

680.16 KB

Description:

Zero-drift op amp.

Note:

This datasheet PDF includes multiple part numbers: ADA4528-2, ADA4528-1.
Please refer to the document for exact specifications by model.
