ADA4805-2, ADA4805-1 Rail-to-Rail Amplifiers

ADA4805-2 Description

Data Sheet 0.2 µV/°C Offset Drift, 105 MHz Low Power, Low Noise, Rail-to-Rail Amplifiers ADA4805-1/ADA4805-2 .

ADA4805-2 Features

* Low input offset voltage: 125 µV (maximum) Low input offset voltage drift 0.2 µV/°C (typical) 1.5 µV/°C (maximum) Ultralow supply current: 500 µA per amplifier Fully specified at VS = 3 V, 5 V, ±5 V High speed performance
* 3 dB bandwidth: 105 MHz Slew rate: 160 V/µs Settling time to 0.1%: 35

ADA4805-2 Applications

* High resolution, high precision analog-to-digital converter (ADC) drivers Battery-powered instrumentation Micropower active filters Portable point of sales terminals Active RFID readers Photo multip

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADA4805-2, ADA4805-1. Please refer to the document for exact specifications by model.

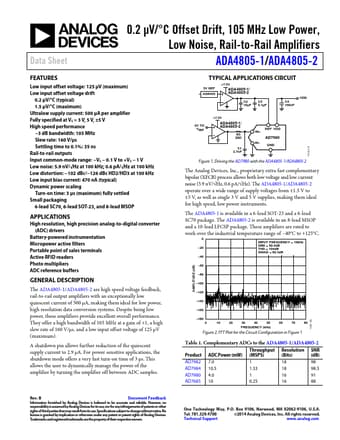

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADA4805-2, ADA4805-1
Manufacturer
Analog Devices ↗
File Size
796.88 KB
Datasheet
ADA4805-1-AnalogDevices.pdf
Description
Rail-to-Rail Amplifiers
Note
This datasheet PDF includes multiple part numbers: ADA4805-2, ADA4805-1.
Please refer to the document for exact specifications by model.
