ADA4807-2, ADA4807-1 - Rail-to-Rail Input/Output Amplifiers

Analog Devices

The ADA4807-2 by Analog Devices is a Rail-to-Rail Input/Output Amplifiers. Below is the official datasheet preview.

Datasheet Details

Part number	ADA4807-2, ADA4807-1
Manufacturer	Analog Devices
File Size	868.57 KB
Description	Rail-to-Rail Input/Output Amplifiers
Datasheet	ADA4807-1-AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: ADA4807-2, ADA4807-1. Please refer to the document for exact specifications by model.

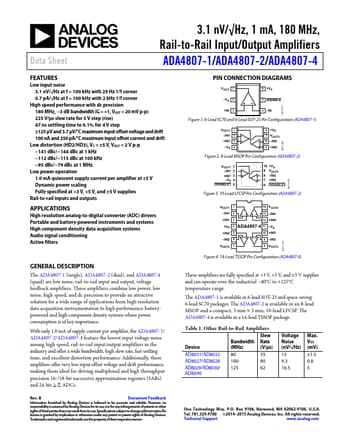

Additional preview pages of the ADA4807-2 datasheet.

Low input noise 3.1 nV/√Hz at f = 100 kHz with 29 Hz 1/f corner 0.7 pA/√Hz at f = 100 kHz with 2 kHz 1/f corner High speed performance with dc precision 180 MHz,.
3 dB bandwidth (G = +1, VOUT = 20 mV p-p) 225 V/μs slew rate for 5 V step (rise) 47 ns settling time to 0.1% for 4 V step ±125 μV and 3.7 μV/°C maximum input offset voltage and drift 100 nA and 250 pA/°C maximum input offset current and drift Low distortion (HD2/HD3), VS = ±5 V, VOUT = 2 V p-p.
141 dBc/.
144 dBc.
