ADA4807-4, ADA4807-1 Rail-to-Rail Input/Output Amplifiers

ADA4807-4 Description

Data Sheet 3.1 nV/√Hz, 1 mA, 180 MHz, Rail-to-Rail Input/Output Amplifiers ADA4807-1/ADA4807-2/ADA4807-4 .

ADA4807-4 Features

* Low input noise 3.1 nV/√Hz at f = 100 kHz with 29 Hz 1/f corner 0.7 pA/√Hz at f = 100 kHz with 2 kHz 1/f corner High speed performance with dc precision 180 MHz,
* 3 dB bandwidth (G = +1, VOUT = 20 mV p-p) 225 V/μs slew rate for 5 V step (rise) 47 ns settling time to 0.1% for 4 V step ±125 μV

ADA4807-4 Applications

* High resolution analog-to-digital converter (ADC) drivers Portable and battery-powered instruments and systems High component

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADA4807-4, ADA4807-1. Please refer to the document for exact specifications by model.

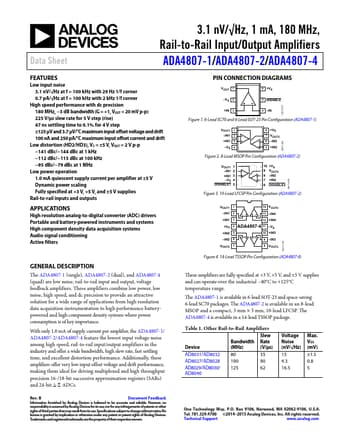

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADA4807-4, ADA4807-1
Manufacturer
Analog Devices ↗
File Size
868.57 KB
Datasheet
ADA4807-1-AnalogDevices.pdf
Description
Rail-to-Rail Input/Output Amplifiers
Note
This datasheet PDF includes multiple part numbers: ADA4807-4, ADA4807-1.
Please refer to the document for exact specifications by model.
