ADA4805-2-EP Rail-to-Rail Amplifier

ADA4805-2-EP Description

Enhanced Product 0.4 µV/°C Offset Drift, 105 MHz Low Power, Low Noise, Rail-to-Rail Amplifier ADA4805-2-EP .

ADA4805-2-EP Features

* Low input offset voltage: 125 µV (maximum) Low input offset voltage drift 0.4 µV/°C (typical) 2.7 µV/°C (maximum) Ultralow supply current: 500 µA per amplifier Fully specified at VS = 3 V, 5 V, ±5 V High speed performance
* 3 dB bandwidth: 105 MHz Slew rate: 160 V/µs Settling time to 0.1%: 35

ADA4805-2-EP Applications

* (AQEC standard) Extended industrial temperature range (
* 55°C to +125°C) Controlled manufacturing baseline 1 assembly/test site 1 fabrication site Enhanced product change notification Qualification data available upon request APPLICATIONS

📥 Download Datasheet

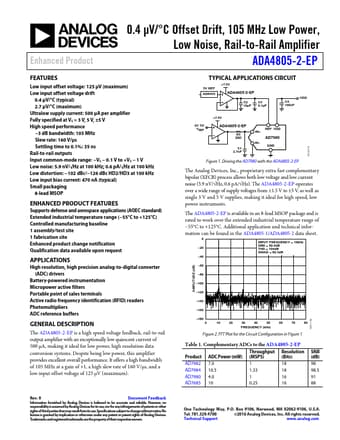

Preview of ADA4805-2-EP PDF
datasheet Preview Page 2 datasheet Preview Page 3
