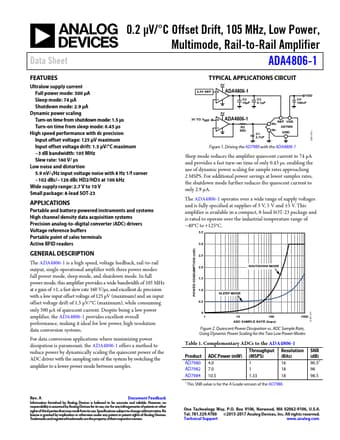

Part number: ADA4806-1
Manufacturer: Analog Devices (https://www.analog.com/)
File Size: 712.53KB
Download: 📄 Datasheet
Description: Rail-to-Rail Amplifier
Ultralow supply current Full power mode: 500 µA Sleep mode: 74 µA Shutdown mode: 2.9 µA
Dynamic power scaling Turn-on time from shutdown mode: 1.5 µs Turn-on time from sl.
Portable and battery-powered instruments and systems High channel density data acquisition systems Precision analog-to-d.
The ADA4806-1 is a high speed, voltage feedback, rail-to-rail output, single operational amplifier with three power modes: full power mode, sleep mode, and shutdown mode. In full power mode, this amplifier provides a wide bandwidth of 105 MHz at a ga.
