ADAR1000 - X Band and Ku Band Beamformer

Analog Devices

📥 Download Datasheet

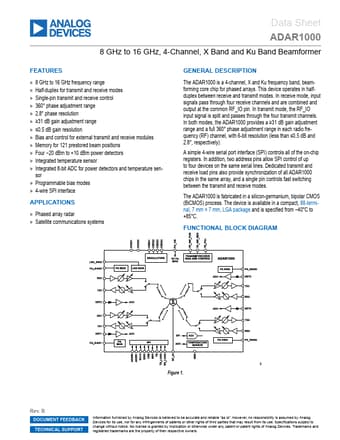

ADAR1000 Datasheet Preview — Preview of ADAR1000 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ADAR1000
Manufacturer: Analog Devices ↗
File Size: 4.72 MB
Datasheet: ADAR1000-AnalogDevices.pdf
Description: X Band and Ku Band Beamformer

ADAR1000 Product details

Description

The ADAR1000 is a 4-channel, X and Ku frequency band, beamforming core chip for phased arrays..

Features

8 GHz to 16 GHz frequency range.
Half-duplex for transmit and receive modes.
Single-pin transmit and receive control.
360° phase adjustment range.
2.8° phase resolution.
≥31 dB gain adjustment range.
≤0.5 dB gain resolution.
Bias and control for external transmit and receive modules.
Memory for 121 prestored beam positions.
Four.
20 dBm to +10 dBm power detectors.
Integrated temperature sensor.
Integrated 8-bit ADC for power de.
